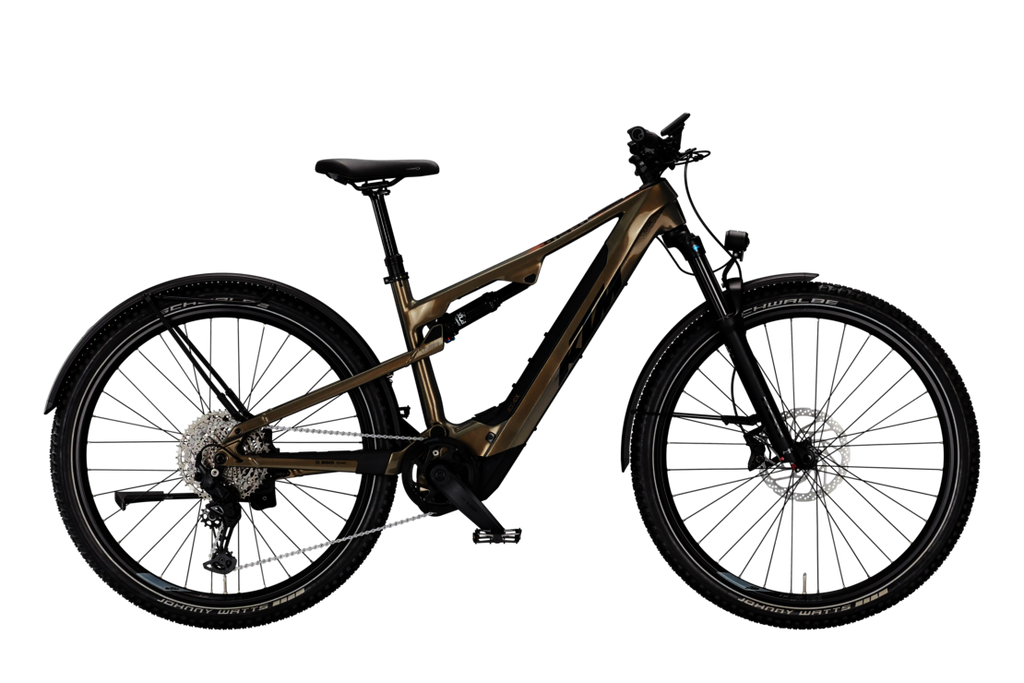

Macina Chacana 892 Lfc

The KTM MACINA CHACANA 892 LFC is a full-power electric mountain bike that extends your range and flattens the steepest climbs.

Colour: Olive Pearl Black Orange.

Available sizes: S, M, L, XL.

Specifications

• Frame: Macina Chacana Al6061 125 UDH|PT800 Bosch BDU38/M5290
• Fork: Suntour XCR34X Air 27,5" 2CR 130mm
• Shock: FOX Float Rhythm 2Pos 230x57,5
• Motor: Bosch PERFORMANCE CX BDU3840
• Display: Bosch LED Remote / INTUVIA 100 LCD Display
• Battery: Bosch PowerTUBE 800Wh horizontal
• Charger: Bosch STANDARD Charger 4A
• R.deraill: Shimano CUES U6000-11/10 LG shadow+
• Shiftlev.: Shimano CUES U6000-11 display
• Crankset: KTM E-COMP2 ISIS 170mm Q8
• Sprocket: Shimano LG400-11 / 11-50
• Chain: KMC e500 LG e-bike
• Brake: Shimano MT402 (3-F) / MT420 4-Piston
• Brake-disc: Shimano RT30 CL 203 / Shimano EM300 CL 180 magnet
• Wheelset: Ambrosio E30 Trail 32H 584x30TC / Ambrosio E30 Trail 32H 584x30TC
• Tire F: Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
• Tire R: Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
• Grips: Ergon GA30
• Bar: KTM COMP Trail35 rizer15 760mm
• Stem: KTM TEAM Trail35
• Headset: Acros AICR intern 1.1/8"-1.5" angle lim
• Saddle: Selle Royal Lookin Athletic Evo
• Seatpost: KTM COMP II dropper internal 34.9 T:125
• Pedals: MTB-Pedal flat VPE-527 alloy
• Carrier: Racktime Alumee rails (plattform option)
• Light F: Litemove SEC-150 150Lux down
• Fender: Racktime Alu 72mm
• Kickstand: KTM 28" adjustable MY2025
• Weight: 28.6
• Permissible Total Weight: 147
• Spokes: DT Champion 2.0 black / DT Alpine II 2.34 black

Summer Season Sale — end of season: RRP €4899, now €3139 (−36%). Free shipping on orders over €500.
